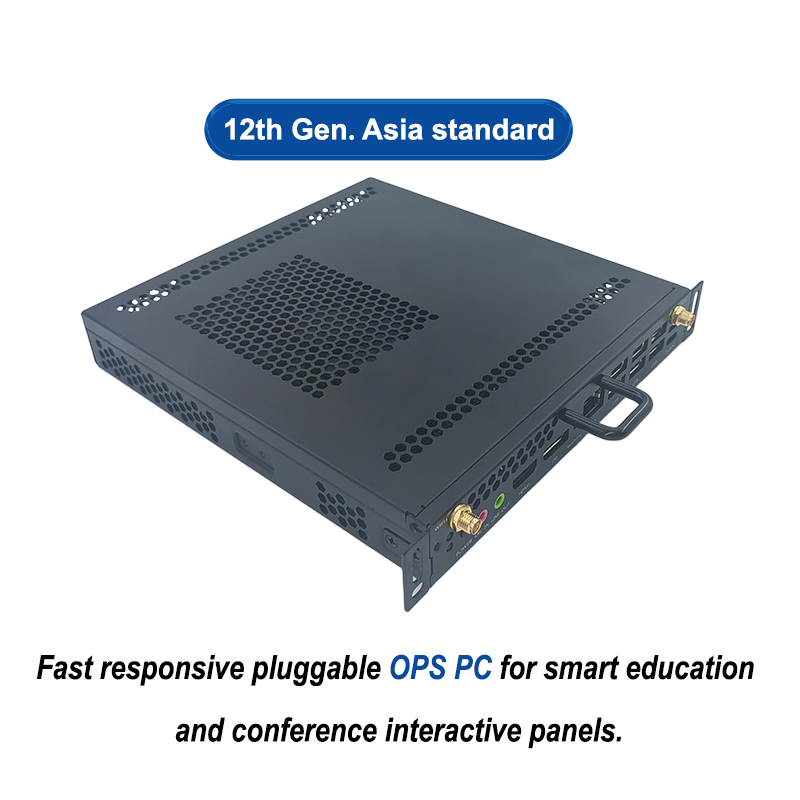

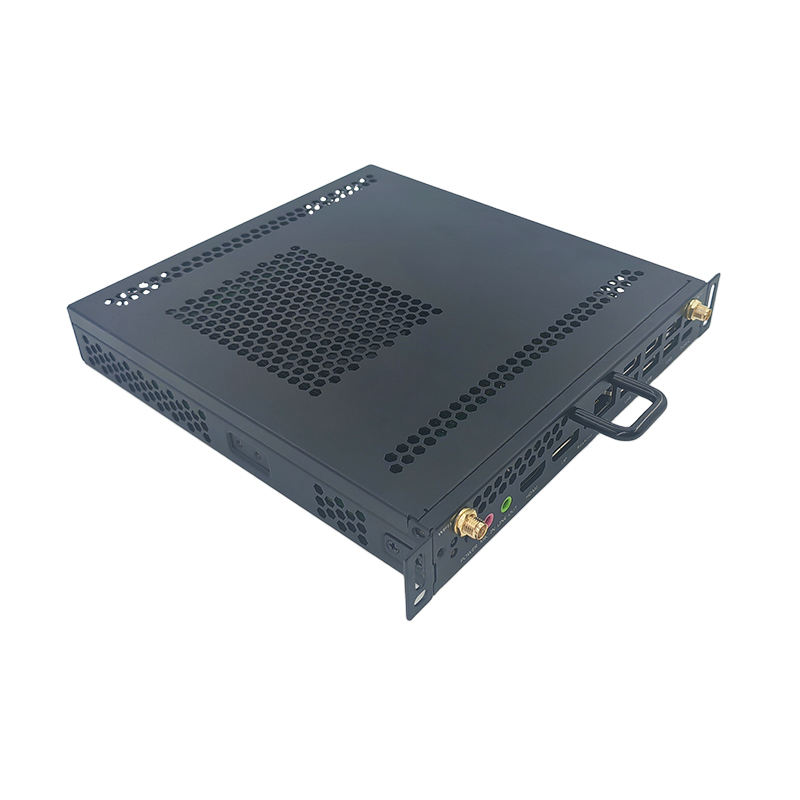

OPS PC-GR Series 30/42mm

  1. 13th Gen Intel Alder Lake‑U/H CPU options; HDMI & DP both support 4K@60Hz output.

  2. Dual‑channel DDR4 RAM max up to 64GB. Dual M.2‑2280 slots: NVMe + SATA SSD for flexible storage expansion.

  3. Asia‑size dimension:195×180×30 mm / 195×180×42 mm, standard 80‑pin hot‑swap OPS interface.

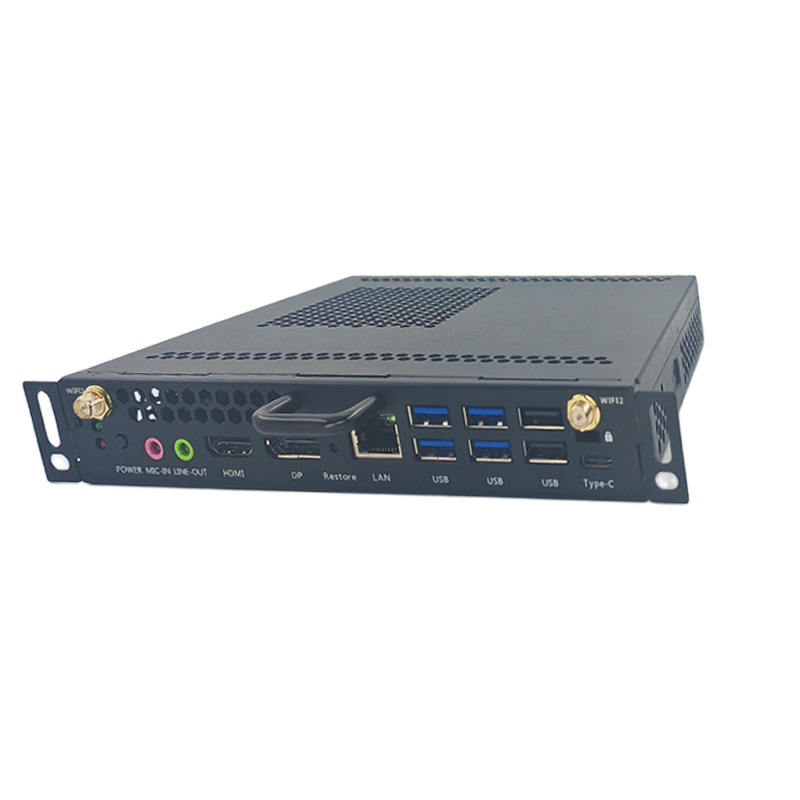

  4. Full I/O: Type‑C, 3×USB3.0+3×USB2.0, Gigabit LAN, audio jacks, dual‑band external antennas.

  5. Support watchdog, power‑on boot, remote wake‑up and hardware monitoring for centralized management.

  6. Wide DC input 12‑19V; Operating temperature:‑10℃~50℃.

Send Email PDF

Product Description

GR‑Series Asia‑size is hot‑pluggable OPS computing module with standard 80‑pin OPS gold‑finger connector for interactive smart whiteboards and commercial displays. Powered by 13th‑Gen Intel Alder Lake‑U/H SOC CPU with Intel UHD Graphics. It features dual M.2‑2280 storage slots, comprehensive I/O ports and optional WiFi5/WiFi6+BT. Supports Windows 10/11 OS, quick‑swap and stable 24/7 continuous operation for Asia‑region education, meeting and digital‑signage projects.

Application Scenarios

Tailored for diverse commercial‑grade deployment scenarios across global markets:

✅ Smart Classroom & Educational Training

✅ Enterprise Meeting & Collaborative Conference Room

✅ Corporate Office & Enterprise Branch Workstations

✅ Government Control Room & Public Information Release

✅ Digital Signage & Commercial Interactive Displays

✅ Industrial On‑site Control & Automation Terminals

✅ Self‑service Kiosk & Smart Medical Display Solutions


Fully Customizable Service

We deliver project‑oriented customization to match your unique requirements: Mechanical size, motherboard configuration, CPU selection, RAM & SSD capacity, WiFi/Bluetooth module, operating system pre‑installation, silk‑screen logo, custom packaging and more. Both small‑batch prototype and large‑volume order are supported.

Ending

Designed for hot‑swap deployment, GHOT OPS PC modules simplify on‑site installation and routine maintenance without complicated cabling. Featuring 24/7 stable performance, rich I/O expansion and centralized manageability, our OPS computing modules serve as the reliable embedded computing core for interactive whiteboards and all kinds of smart commercial display projects worldwide.
